Zirconium Pipe Fittings

HEXON inventory and supply various zirconium flange and pipe fittings such as 90° and 45° elbows, reducers, tees, coupling, stub ends. We can also fabricate zirconium flange and fittings according to custom drawing per individual specification.

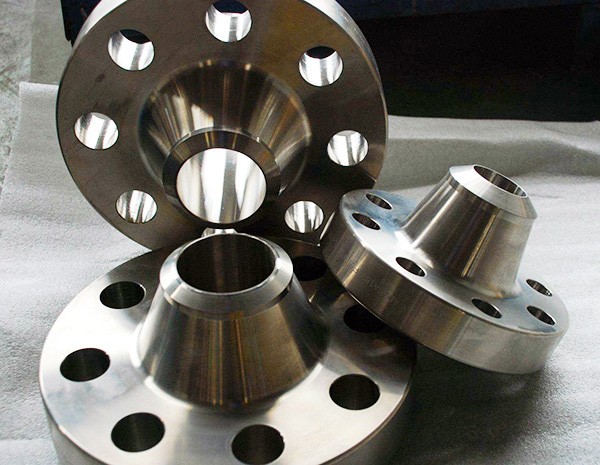

● Flange - PL, SO, WN, SW, TH, BL, PJ/SE, PY/RJ

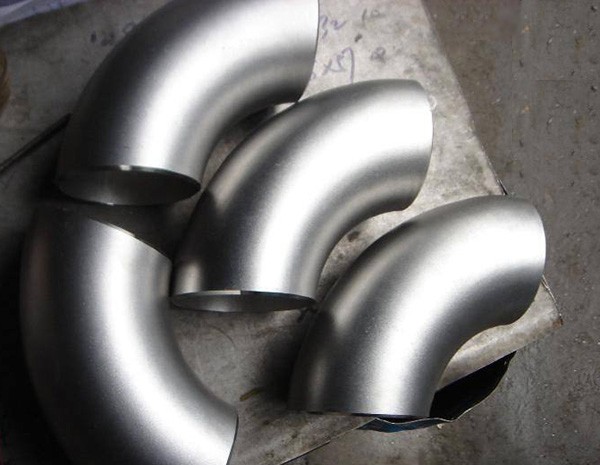

● Elbow - 30-deg, 45-deg, 90-deg, 180-deg return. R=1.0D, 1.5D, 3D, 5D

● Stub end - lap joint

● Tee and cross - straight or reducing outlet

● Reducer - concentric and eccentric

● Olet – weldolet, socketolet

● Cap, coupling and other parts according to drawing

Typical grades of zirconium HEXON can offer include Zirconium 702 (Zr702), Zirconium 704 (Zr704) and Zirconium 705 (Zr705). These grades normally have hafnium content less than 4.5% according to ASTM, or much lower content made to order.

No matter for small piece or large size, quality always means the same thing to HEXON. For instance, we analyze the VAR ingot, take specimen from finished product for tension test, and inspect each rod by Ultrasonic to prevent potential internal defects. Starting process from ingot also makes our price very competitive in the market.

HEXON provide EN 10204/3.1 certification including related tests and inspections stipulated in ASTM. If necessary, HEXON also can provide certification to report the grain-size which is examined by SEM.

Pressure rating

CL 150-600 lb

PN 1.6-10 Mpa

Dimension

Outside diameter - DN15 to DN1200 (NPS 1/2 to NPS 48”)

Wall thickness - Sch 5S to Sch 80

Surface

Sand-blasting

Polishing

Marking with specified logo, heat/lot no.

Testing

Chemical Analysis

Tensile test

Hydrostatic test

Penetrant test (PT)

Ultrasonic test (UT)

Radiographic (RT)

Specification

ASTM B493 / B493M

ASTM B653 / B653M
