Titanium Wiremesh

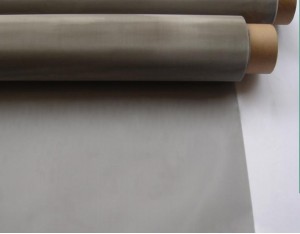

Titanium wire mesh which also called as wire cloth is a product weaved from titanium wire. Plain and twill are the most common and popular weaving methods.

Titanium wire mesh is mainly used as filter in acid and alkali liquid or gas conditions, because even exposed in air at room temperature, a very thin but dense oxide layer can be formed on the surface of titanium, and this makes titanium have good stability in acidic, alkaline and neutral salt solution.

Specification of titanium wire mesh

Material: Gr1, Gr2, Gr7, Gr12

Diameter of wire: 0.1 mm - 3.5 mm

Mesh: 1 - 400 meshes

Width: 10 - 2000 mm

Surface: black or chemical cleaned in bright

Form: rectangle, round, in single piece or coil, or made to custom form

Terminology of wire mesh

Selvage edge

The term selvage means finished edges, that is, the fill wires are woven in continuously, forming a smooth or finished edge running the length of a roll. Generally speaking, a selvage edge will increase the stability of a mesh and provide a safety edge for handling.
