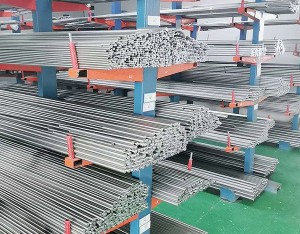

Titanium rods
HEXON produce and supply titanium and titanium alloy (Alpha, Alpha-beta, Beta) round rods according to ASTM/AMS/DIN/ISO common specifications, or based on customer’s individual requirement. Our know-how background and extensive experience are guarantee to provide supreme quality that our customers expect, with less expensive cost and on time delivery.
A large number of titanium rods in different grades are accessible for your orders. Either it is CP titanium in annealed condition, or high strength alloy in STA condition, we will be here working with you to achieve all the essential technical targets.
Your quality concerns are our motivation and mission. You can rely on us as we have been engaging in titanium industry over 10 years. Our well-trained staff in both production and inspection department understand every single requirement of your orders. From chemical, mechanical to ultrasonic and micrograph, from surface, tolerance, to marking and packing, we will deliver only the perfect products.
Below are more information of our Titanium round rods for your reference.
Titanium Rods for Industrial
|
Grade |
UNS |
DIN |
Key Element |
Typical Specification |
|
Gr1 |
R50250 |
3.7025 |
CP-1 |
ASTM B348 ASME SB348 DIN 17862 |
|
Gr2 |
R50400 |
3.7035 |
CP-2 |
|
|
Gr3 |
R50550 |
3.7055 |
CP-3 |
|
|
Gr4 |
R50700 |
3.7065 |
CP-4 |
|
|
Gr5 |
R56400 |
3.7164/5 |
Ti-6Al-4V |
|
|
Gr7 |
R52400 |
3.7235 |
Ti-0.2Pd |
|
|
Gr9 |
R56320 |
3.7195 |
Ti-3Al-2.5V |
|
|
Gr11 |
R52250 |
3.7225 |
Ti-0.2Pd |
|
|
Gr12 |
R52250 |
3.7105 |
Ti-0.3Mo-0.8Ni |
|
|
Gr36 |
R58450 |
/ |
Ti-45Nb |
Titanium Rods for Aerospace & Military
|
Grade |
UNS |
DIN |
Key Element |
Typical Specification |
|
CP-70 |
R50700 |
3.7065 |
CP-4 |
AMS 4921 / MIL-T-9047 |
|
Gr5 |
R56400 |
3.7164 |
Ti-6Al-4V |
AMS 4928 / AMS 4965 / AMS 4967 / MIL-T9047 |
|
Gr6 |
/ |
3.7114 |
Ti-5Al-2.5Sn |
AMS 4924 / AMS 4926 / MIL-T9047 |
|
Gr9 |
R56320 |
3.7195 |
Ti-3Al-2.5V |
MIL-T9047 |
|
Gr19 |
R58640 |
/ |
Ti-3Al-8V-6Cr-4Mo-4Zr |
AMS 4957 / AMS 4958 |
|
Gr23 |
R56401 |
3.7164 / 3.7165 |
Ti-6Al-4V ELI |
AMS 4930 / AMS 4931 / MIL-T9047 |
|
Ti-6-2-4-2 |
R54620 |
3.7145 |
Ti-6Al-2Sn-4Zr-2Mo |
AMS 4975 / MIL-T9047 |
|
Ti-6-2-4-6 |
R56260 |
/ |
Ti-6Al-2Sn-4Zr-6Mo |
AMS 4981 / MIL-T9047 |
|
Ti-6-6-2 |
R56620 |
3.7175 |
Ti-6Al-6V-2Sn |
AMS 4971 / AMS 4978 / AMS 4979 | MIL-T9047 |
|
Ti-8-1-1 |
R54810 |
/ |
Ti-8Al-1Mo-1V |
AMS 4972 / MIL 9047 |
|
Ti-10-2-3 |
R56410 |
/ |
Ti-10V-2Fe-3Al |
AMS 4984 |
|
SP-700 |
/ |
/ |
Ti-4.5Al-3V-2Mo-2Fe |
AMS 4964 |
|
Ti-17 |
R58650 |
/ |
Ti-5Al-2Sn-2Zr-4Mo-4Cr |
AMS 4995 |
|
** For other alloy not listed above, please contact our sales. |
||||
Titanium Rods for Medical
|
Grade |
UNS |
DIN |
Key Element |
Typical Specification |
|
Gr1 |
R50250 |
3.7025 |
CP-1 |
ASTM F67 ISO 5832-2
|
|
Gr2 |
R50400 |
3.7035 |
CP-2 |
|
|
Gr3 |
R50550 |
3.7055 |
CP-3 |
|
|
Gr4 |
R50700 |
3.7065 |
CP-4 |
|
|
Gr5 |
R56400 |
3.7165 |
Ti-6Al-4V |
ASTM F136 / ISO 5832-3 |
|
Gr23 |
R56401 |
3.7164/3.7165 |
Ti-6Al-4V ELI |
|
|
Ti-6-7 |
R56700 |
/ |
Ti-6Al-7Nb |
ASTM F1295 / ISO 5832-11 |
|
Ti-13-13 |
R58130 |
/ |
Ti-13Nb-13Zr |
Size and Tolerance
● Diameter - from 3 mm to 320 mm
● Length - from 1000 mm to 4000 mm
● Straightness - 1 mm/1000 mm
● Tolerance of diameter – from h6 to h13 (e.g. h9 tolerance for Dia. 8 mm is +0/-0.036 mm)
|
Diameter (mm) |
h6 |
h7 |
h8 |
h9 |
h10 |
H11 |
h12 |
h13 |
|
Tolerance precision (μm) |
||||||||
|
3 Max |
6 |
10 |
14 |
25 |
40 |
60 |
100 |
140 |
|
3~6 |
8 |
12 |
18 |
30 |
48 |
75 |
120 |
180 |
|
6~10 |
9 |
15 |
22 |
36 |
58 |
90 |
150 |
220 |
|
10~18 |
11 |
18 |
27 |
43 |
70 |
110 |
180 |
270 |
|
18~30 |
13 |
21 |
33 |
52 |
84 |
130 |
210 |
330 |
|
30~50 |
16 |
25 |
39 |
62 |
100 |
160 |
250 |
390 |
|
50~80 |
19 |
30 |
46 |
74 |
120 |
190 |
300 |
460 |
|
80~120 |
22 |
35 |
54 |
87 |
140 |
220 |
350 |
540 |
|
120~180 |
25 |
40 |
63 |
100 |
160 |
250 |
400 |
630 |
Delivery condition
● Surface ground
● Unannealed / Annealed / Duplex Annealed / Solution Heat Treated and Aged (STA) / Solution and Precipitation Heat Treated / Solution Heat Treated and Stabilized
● Laser marking with Heat / Batch number, grade, size, specification (or text given by customer)
● Plywood boxes
Inspection and Quality Assurance
● Chemical analysis - metallic (ICP-OES) and gas (gas analyzer) elements
● Mechanical properties - tensile, yield, elongation, reduction of area, creep resistance, fracture toughness (at room or elevated temperature)
● Ultrasonic - 100% NDT for inspecting inner cracks, pores and other defections
● Microstructure - micrograph image (100X, 200X, 500X)
● Dimensional tolerance - diameter, length, straightness, roundness
● Surface contamination - surface defects by visual check
● Hardness test - HB, HV, or HRC data reported
● Certificate - in house EN 10204 3.1 (traceable) / Third party (such as SGS) inspection
