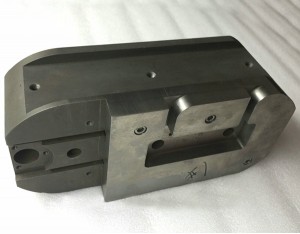

Radiation Shielding Parts
Tungsten heavy alloy is the right material for radiation shielding applications such as in medical, security and inspection equipment , as its combination of higher density (more than 60% denser than lead), good machinability, corrosion resistance, excellent radiation absorption (superior to lead and steel), simplified life cycle and high strength.
Tungsten heavy alloy VS Lead
● Higher density
● Better radiation absorption
● Volume saving
● Non-toxic, environment friendly
● Longer service life
● No license required
Radiation shielding products we can supply
● X(γ)-beam collimators
● Isotope containers
● Nuclear shielding wall
● Tungsten heavy alloy sheet, foil
● Tungsten heavy alloy ring, tube, block
● Tungsten heavy alloy housing, cap, cover, shell, door
● Fabricated parts per drawing
Technical datasheet for tungsten heavy alloy
Tungsten heavy alloy
W-Ni-Fe
W-Ni-Cu
Designation
90W
92.5W
95W
97W
90Cu
92.5Cu
97Cu
Density (g/cm3)
17.0
17.6
18.0
18.5
17.0
18.0
18.5
Tensile Strength (MPa)
820
780
820
840
750
650
550
Elongation (%)
10
7.0
7.0
5.0
1.2
1.0
0.5
Hardness (HRC)
25
26
27
28
24
27
28
Young’s Modulus (GPa)
310
320
340
365
270
300
320
Thermal expansion coefficients (10-6/K)
4.61
4.62
4.60
4.50
5.60
4.40
4.00
Electrical conductivity (%)
10
13
13
17
17
19
23
Thermal conductivity (W/m.K)
80
90
93
95
110
120
125
